Float and Board Level Indicator

level gauges
float and board level indicator

Description of Float and Board Level Indicator

Process Control Devices offers a series of Float and Board type Level indicator designed to measures the level of liquid in storage tanks. Float & board type tank level indicator suitable for water, fire water, dm water, oil, diesel, lube oil, molasses, silicates, glucose, all non-hazard, non– pressurized tanks/ vessels. The specific gravity of the fluid should be more than 0.6 gm/cm3. The float designs as per the specific gravity of the liquid, floating on the liquid levels.

Float and board type level indicator consist of float connected to an indicator/pointer through Rope via a Sets of pulleys, the pointer slides over a centimeter marked scale board, installed parallel to the tank. for more than 3 meter height of the tank, we provide two guide wires firmly anchored to the tank bottom. so that pendulum movement of the float is restricted. Process control devices are leading manufacturer of float and board type level indicator in Mumbai India.



Specifications

Tank height / Range: 0 to 10 meters Without Wire Rope Guide Assembly

Tank height / Range: Above 10 meters With Wire Rope Guide Assembly

Temperature: Up to 150°C

Pressure: Up to 1 Kg/cm²

Connection:  Flanged to ASA, BS, DIN, Screwed BSP, NPT

Wetted Part Material: SS 304, SS 304L, SS 316, SS 316L, PP, PTFE COATED SS

Silent Features

► Non- stretching multi string wire rope in stainless steel or polypropylene

► Dust free enclosure for pulleys minimizing friction in movement

► Easy to install, user-friendly

► Vapor seal available for evaporating liquids

► High efficiency

► Excellent functionality

► Enlarged visibility

  • maintenance 98% 98%
  • User Friendly 100% 100%
  • Accuracy 98% 98%
  • Perfomance 95% 95%

Application

► Cooling tower sump

► Liquid petroleum products

► Highly viscous oils & varnishes

► Edible oil

► Effluent, chemicals

► Nitric acid bulk storage

► Power plant lime slurry

► Lubricant distributor

Available Options

► Float & board type level indicator

► Float & board type level indicator high & low-level switch

► Float & board type level indicator with wire rope guide assembly

► Float & board type level indicator with wire rope guide assembly and high & low-level switch

► Float & board type level indicator (vapor seal type)

► Float & board type level indicator with ‘u’ seal

Related Products

reflex level gauge

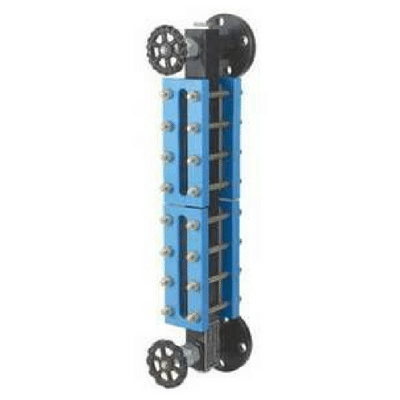

Reflex Level Gauge
